Accuracy 0.5% Tensile Testing Equipment Electric Universal Material Testing Machine
UTM Introduction :
This 5 Tons Universal Testing Machine is suitable for tensile, compression, bending test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They may add test methods or rules according to customers requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Specifications of 5T UTM :
| Machine Name | 5T Tensile Testing Equipment Electric Universal Material Testing Machine |
| Model No. | PT-1136 |
| Sensor Capacity | 500kg, 1000kg, 2000kg,5000kg option |
| Software | Windows XP platform fully open test software |
| Force measuring accurate | ±0.5% |
| Force measuring resolution | 1/100,000 |
| Effective force measurement range | 0.5~100%F.S |
| Deformation measurement resolution | ±0.1% |
| Test speed | 0.5～300mm/min, free set |
| Test maximum travel | Maximum 1000mm,include griper |
| Test space | Front and back ∝,left and right 400mm |
| Stop mode | The upper and lower limit of the security settings, emergency stop button, the program strength and elongation set, test failure sensing |
| Special Features | Able to do hold pull and hold pressure test |
| Optional configuration | Gripper*1,software and USB *1,power line*1,CD operation illustration*1,certificate*1,warranty card*1 |
| Purchase Option | Business computer*1, color printer*1,PT-211 two point’s extensimeter,and kinds of grippers. |
| Machine Dimensions | About 76×50×175cm(W×D×H) |
| Machine Weight | About 350kg |
| Motor | AC servo motor |
| Electric Power | 1PH,AC220V,50/60Hz,10A or order |
5T Tensile Testing Equipment Featutres :
(1). The structure adopts duralumin stuff after burned lacquer handling, the inner setting were non-gap double balls bearing screws and double oriented standing poles which were high precision; it has a good load efficiency and steady structure. Panasonic digital AC servo system can ensure the driving system to be high efficiency, steady driving, low noise, speed precision which is from﹣0.2% to﹢0.2%.
(2). Flexed dustproof curtain made of imported PVC material, wear well and beautiful & top grade.
(3). Adopt imported high precision transducer, the effective testing range is within 0.5%～100%F.S, the precision is better than 0.085%;
(4). Double high definition coder can test the sample to be anamorphic or not.
(5). Aluminium alloy stuff and spray molded handling make the appearance more exquisite.
(6). Special software can finish all testing reference setting, controlling of working status and collecting data & analysis, results shown and printing output;
(7). Business computer controlling, convenient collocations, professional testing program, 32 digits fast speed data procured, all can output various charts and curves.

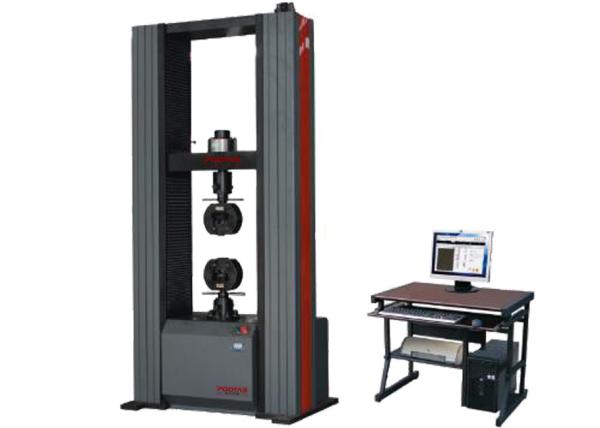

50000N Universal Testing Machine Photo :
FAQ
Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.
Q2: Where is the loading port?
A: Shenzhen Port.
Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.
Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
